Designing PCB with Altium Designer
- 28 ott 2016
- Tempo di lettura: 1 min
Since I wanted to move from the breadboard to a professional PCB, I started learing how to use Altium Designer. I printed 2 proto boards. The first one had too small pads, making soldering difficult.

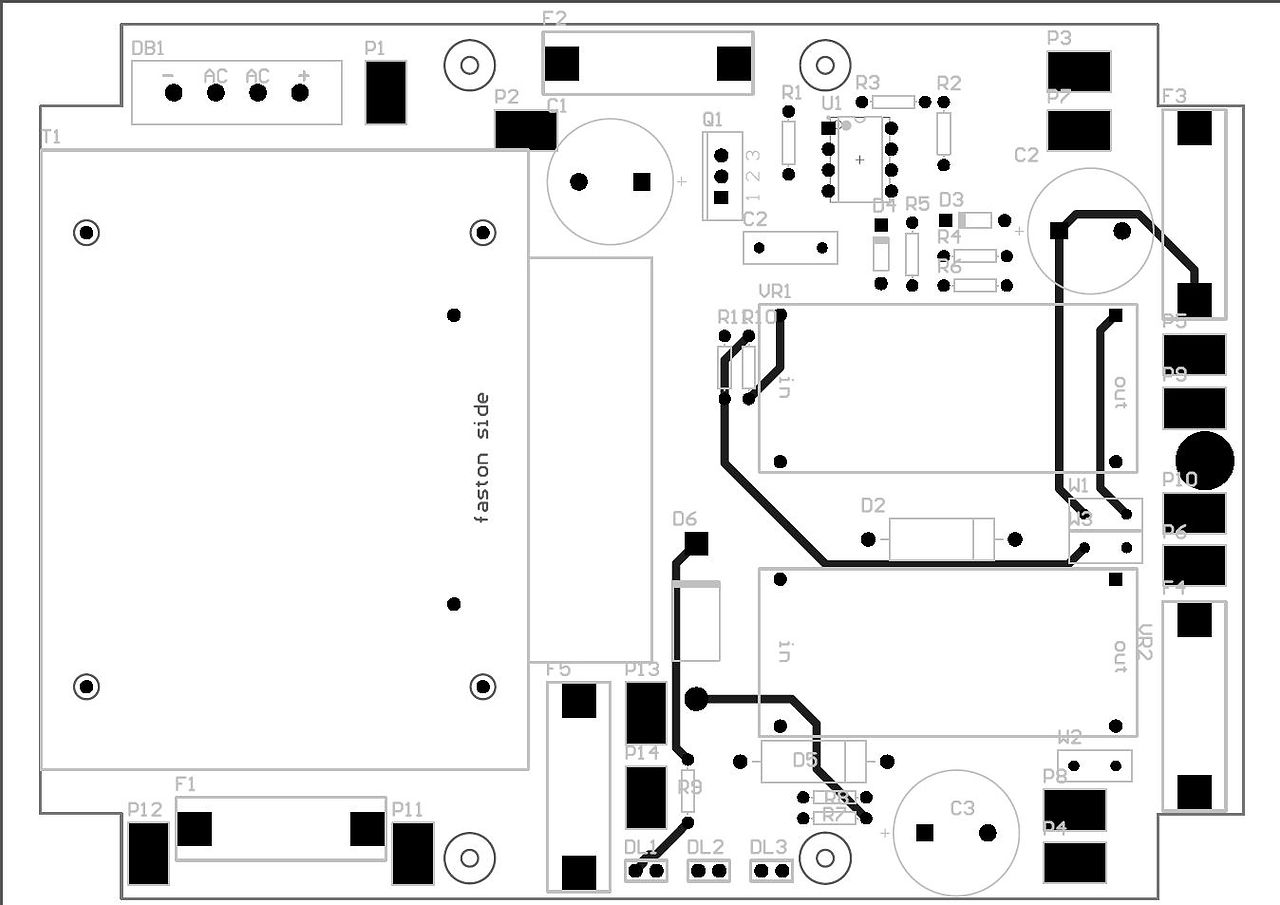

pcb first prototype PCB in the box assembled assembled testing
Current measurment with C64 as load (C64 here is using an expansion card on exp port), no drive:
current measurment
Measuring voltage ripple on the left pic (around 20-30 mV peak to peak) and absolute voltage on right pic, measurments taken from PSU board:
ripple on 5V line_a nominal voltage with C64 ON_a
